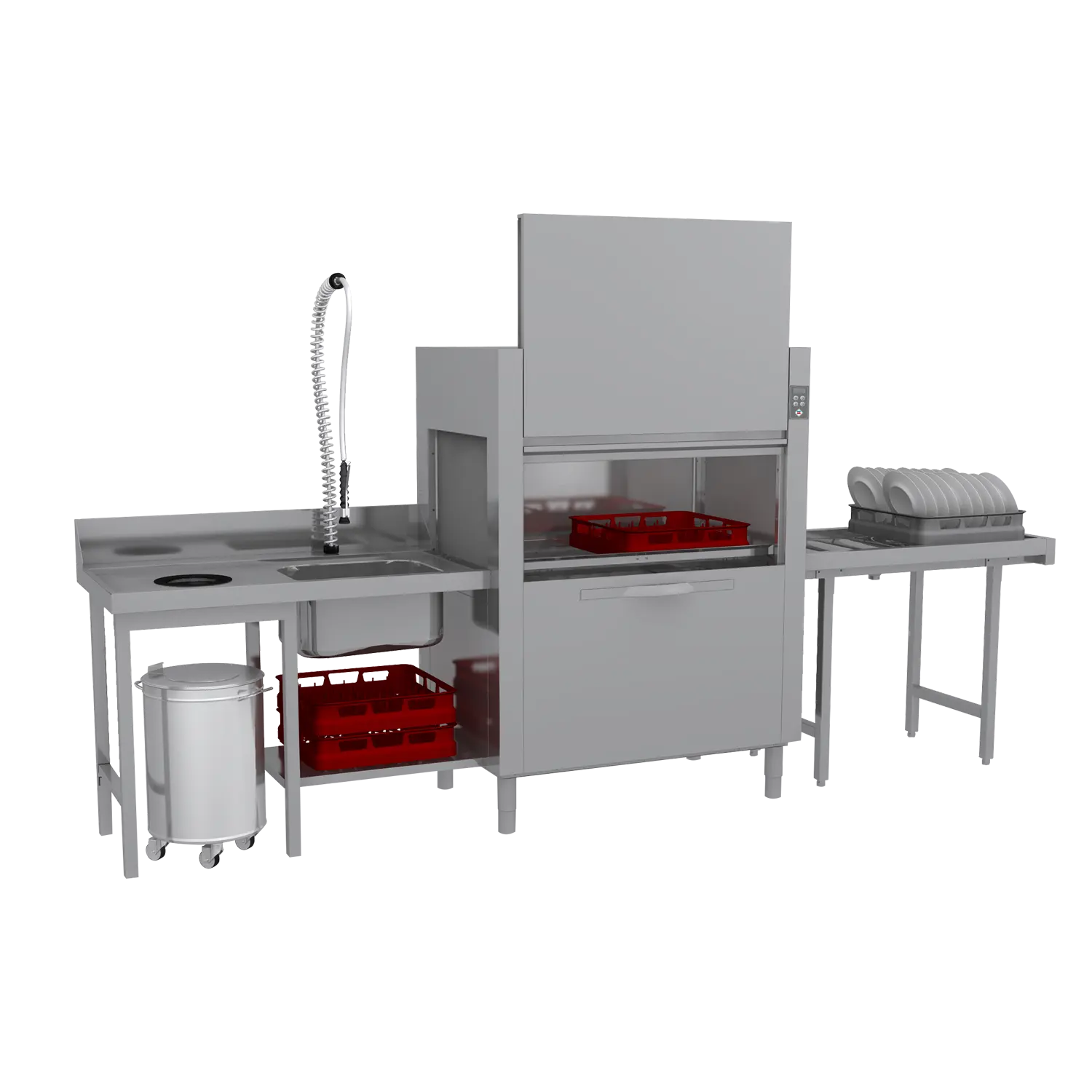

Rack conveyor dishwasher 160 racks/hour cold water, right exit | RM - CT 160 W ABT RX
- To the product for free: 1x RM Clean+ 12 kg (00012271) and 1x RM Rinse+ 10 kg (00012273)
- Display type: ProSmart LED interface
- Number of programs: 4
- Number of skin: 2
- Maximal rack feed [racks/h]: 160
- Door clear height [mm]: 450
- Rack size [mm]: 500 x 500
- Water consumption of the washing cycle [l/basket]: 1,1 - 2,2
- Washing cycle time [s/basket]: 22 - 60
- Detergent and rinse pump system: ProDose - accurate dosing with a peristaltic pump
- Wash pump type: two-way - DuoFlow
- Detergent dispenser: Yes
- Rinse aid dispenser: Yes
Technical details
| To the product for free | 1x RM Clean+ 12 kg (00012271) and 1x RM Rinse+ 10 kg (00012273) |
| SAP Code | 00014488 |
| Net Width [mm] | 1150 |
| Net Depth [mm] | 770 |
| Net Height [mm] | 1615 |
| Net Weight [kg] | 192.00 |
| Gross Width [mm] | 1280 |
| Gross depth [mm] | 920 |
| Gross Height [mm] | 1800 |
| Gross Weight [kg] | 218.00 |
| Device type | Electric unit |
| Control type | Digital |
| Material | AISI 304 |
| Power electric [kW] | 31.700 |
| Loading | 400 V / 3N - 50 Hz |
| Number of programs | 4 |
| Opening of device | Retractable up |
| Door clear height [mm] | 450 |
| Inlet pressure [bar] | 1-4 |
| Adjustable feet | Yes |
| Number of skin | 2 |
| Modular construction | Yes |
| Pre-wash module | No |
| Maximal rack feed [racks/h] | 160 |
| Self-cleaning cycle | No |
| Boiler capacity [ l ] | 17.00 |
| Boiler power [kW] | 19.000 |
| Basin volume [l] | 70 |
| Tank power [kW] | 10.500 |
| Number of washing arms | 3 |
| Number of rinsing arms | 2 |
| Washing arm type | Firm |
| Washing arm material | Stainless steel |
| Atmospheric boiler with rinse pump | Yes |
| Rinsing arm type | Firm |
| Rinsing arm material | Stainless steel |
| Deep drawn tank | Yes |
| Rack support | welded |
| Tank surface strainers | stainless steel |
| Boiler thermostat adjust | Yes |
| Rack feed capacity | 60-80-120-160 |
| Detergent and rinse pump system | ProDose - accurate dosing with a peristaltic pump |
| Hot water electric valve | Yes |
| Rack size [mm] | 500 x 500 |
| Min supply water temperature [°C] | 10 |
| Max supply water temperature [°C] | 40 |
| Display type | ProSmart LED interface |
| USB port | Yes, for Firmware actualisation |
| Self-diagnostics | Yes |
| Double rinse | No |
| Wash pump type | two-way - DuoFlow |
| Detergent dispenser | Yes |
| Rinse aid dispenser | Yes |
| Water consumption of the washing cycle [l/basket] | 1,1 - 2,2 |
| Washing cycle time [s/basket] | 22 - 60 |
| Rinse water temperature [°C] | 82 |
| Standard equipment for device | 1x glass basket, 1x plate basket, 1x cutlery basket |
| Program ProSpeed | No |
| Program ProFessional | No |
| Program ProFessional 2 | No |
| Program ProFessional 4 | No |
| Program ProFessional 6 | No |
| Program ProFessional 8 | No |
| Program ProFessional 10 | No |
| Program ProTemp | No |
| Program ProSelf | No |
| Program ProClean | No |
| Program ProDrain | No |
| Program ProEco | No |
| Program ProNew | No |
| Program ProLong | No |
| Program ProGlass | No |
| Program ProPlates | No |
| Program ProCold | No |
| Program ProWater | No |
| Program ProActive | No |
| Program ProActive 5 | No |
| Program ProActive 7 | No |
| Program ProSteel | No |
| Program ProSan | No |
| Program High Capacity | Yes |
| Program General purpose | Yes |
| Program Prolonged contact (DIN 10534) | Yes |
| Program Glasses | Yes |
| Cross-section of conductors CU [mm²] | 16 |
| Water supply connection | 3/4" |
| Diameter nominal | DN 50 |
