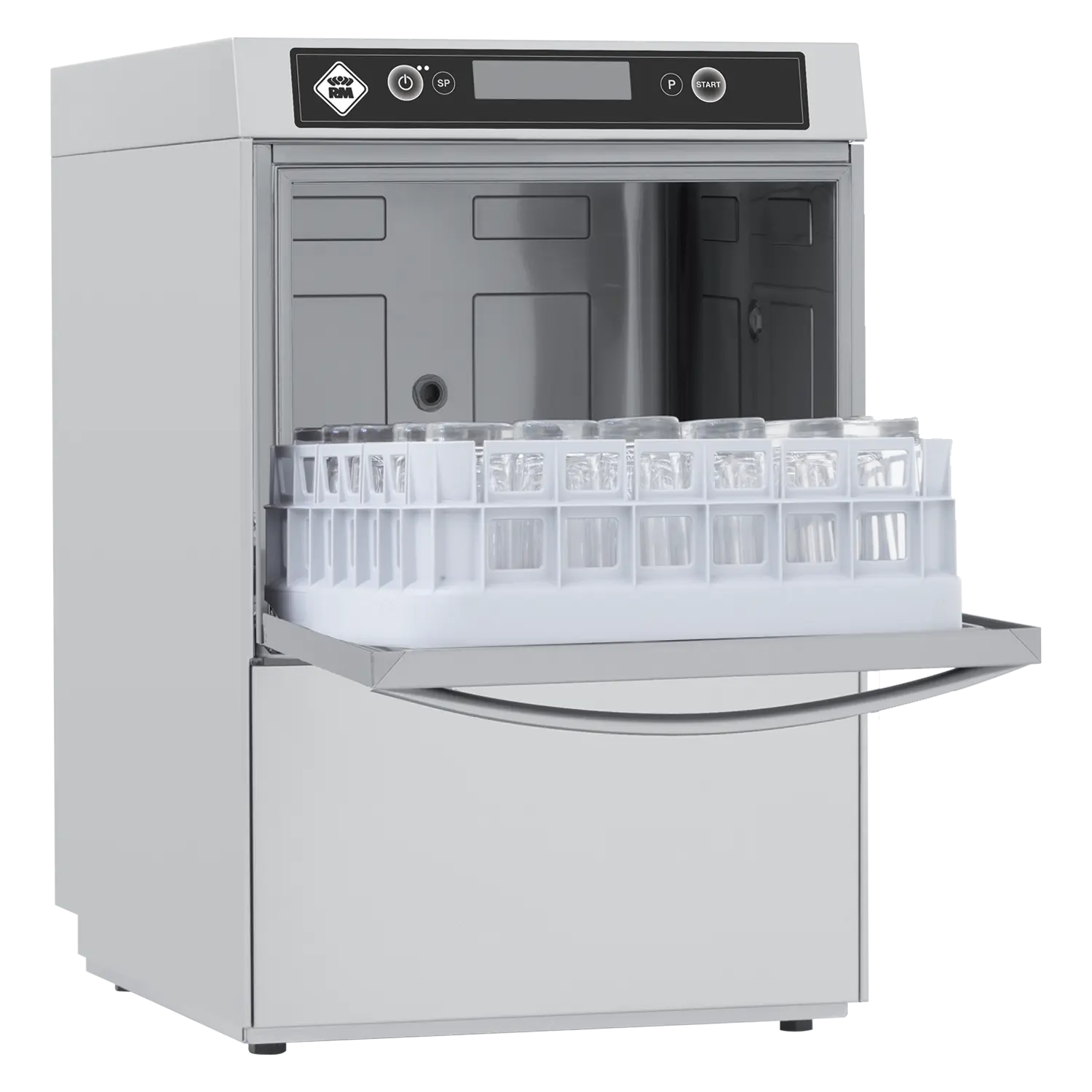

Undercounter dishwasher double skin softener 40x40 - 230 V | RM - TTA 42 ABT
- To the product for free: 1x RM Clean+ 12 kg (00012271) and 1x RM Rinse+ 10 kg (00012273)
- Display type: LCD multifunction display
- Number of programs: 9
- Number of skin: 2
- Door clear height [mm]: 320
- Rack size [mm]: 400 x 400
- Drain pump: Yes
- Water consumption of the washing cycle [l/basket]: 1,2
- Washing cycle time [s/basket]: 90-120-150
- Detergent and rinse pump system: Accurate dosing with a peristaltic pump
- Wash pump type: DuoFlow
- Self-cleaning cycle: Yes
- Drain filter: Triple filtration captures particles up to 0.8 mm in size, electronically controlled partial discharge before the rinsing phase ensures 0% loss of clean water into the waste
Technical details
| To the product for free | 1x RM Clean+ 12 kg (00012271) and 1x RM Rinse+ 10 kg (00012273) |
| SAP Code | 00011290 |
| Net Width [mm] | 466 |
| Net Depth [mm] | 556 |
| Net Height [mm] | 695 |
| Net Weight [kg] | 42.00 |
| Gross Width [mm] | 660 |
| Gross depth [mm] | 560 |
| Gross Height [mm] | 870 |
| Gross Weight [kg] | 45.00 |
| Device type | Electric unit |
| Control type | Digital |
| Material | Stainless steel |
| Power electric [kW] | 3.500 |
| Loading | 230 V / 1N - 50 Hz |
| Rack size [mm] | 400 x 400 |
| Number of programs | 9 |
| Opening of device | Tilting down |
| Door clear height [mm] | 320 |
| Adjustable feet | Yes |
| Number of skin | 2 |
| Self-cleaning cycle | Yes |
| Boiler capacity [ l ] | 2.60 |
| Boiler power [kW] | 2.600 |
| Basin volume [l] | 8 |
| Tank power [kW] | 0.600 |
| Number of arms for both rinsing and washing | 2 |
| Arm connection | Hand loosen/tighten screw |
| Washing arm type | Rotatable two-pronged |
| Washing arm material | Stainless steel |
| Atmospheric boiler with rinse pump | Yes |
| Rinsing arm type | Rotating two-pronged |
| Rinsing arm material | Stainless steel |
| Deep drawn tank | Yes |
| Rack support | Pressed |
| Tank surface strainers | stainless steel |
| Drain filter | Triple filtration captures particles up to 0.8 mm in size, electronically controlled partial discharge before the rinsing phase ensures 0% loss of clean water into the waste |
| Thermostop | Yes |
| Boiler thermostat adjust | Yes |
| Rack feed capacity | 24-30-40 |
| Detergent and rinse pump system | Accurate dosing with a peristaltic pump |
| Energy Saving system | Energy saving system due to lowering the boiler temperature |
| Rinse system | Composite arms common for rinsing and washing with geometry for spraying water in thin jets directly against the dishes, the rinsing pump ensures constant pressure |
| Heating system | System of simultaneous operation of the heating element of the bath and the boiler, reducing the time for starting the next cycle |
| Quick heating system | System for rapid heating of water in the tank |
| Hot water electric valve | Yes |
| Closing door system | Reduces noise, dampens the door stop, which could cause damage to dishes |
| Built-in softener | Yes |
| Display type | LCD multifunction display |
| USB port | Yes, for Firmware actualisation |
| Drain pump | Yes |
| Self-diagnostics | Yes |
| Wash pump type | DuoFlow |
| Detergent dispenser | Yes |
| Rinse aid dispenser | Yes |
| Water consumption of the washing cycle [l/basket] | 1,2 |
| Washing cycle time [s/basket] | 90-120-150 |
| Rinse water temperature [°C] | 85 |
| Standard equipment for device | 2x glass basket, 1x cutlery basket |
| Program ProSpeed | Yes |
| Program ProFessional | Yes |
| Program ProTemp | Yes |
| Program ProClean | Yes |
| Program ProDrain | Yes |
| Program ProNew | Yes |
| Program ProPlates | Yes |
| Program ProCold | Yes |
| Program ProWater | Yes |
| Cross-section of conductors CU [mm²] | 1 |
| Water supply connection | 3/4" |
| Diameter nominal | DN 50 |
