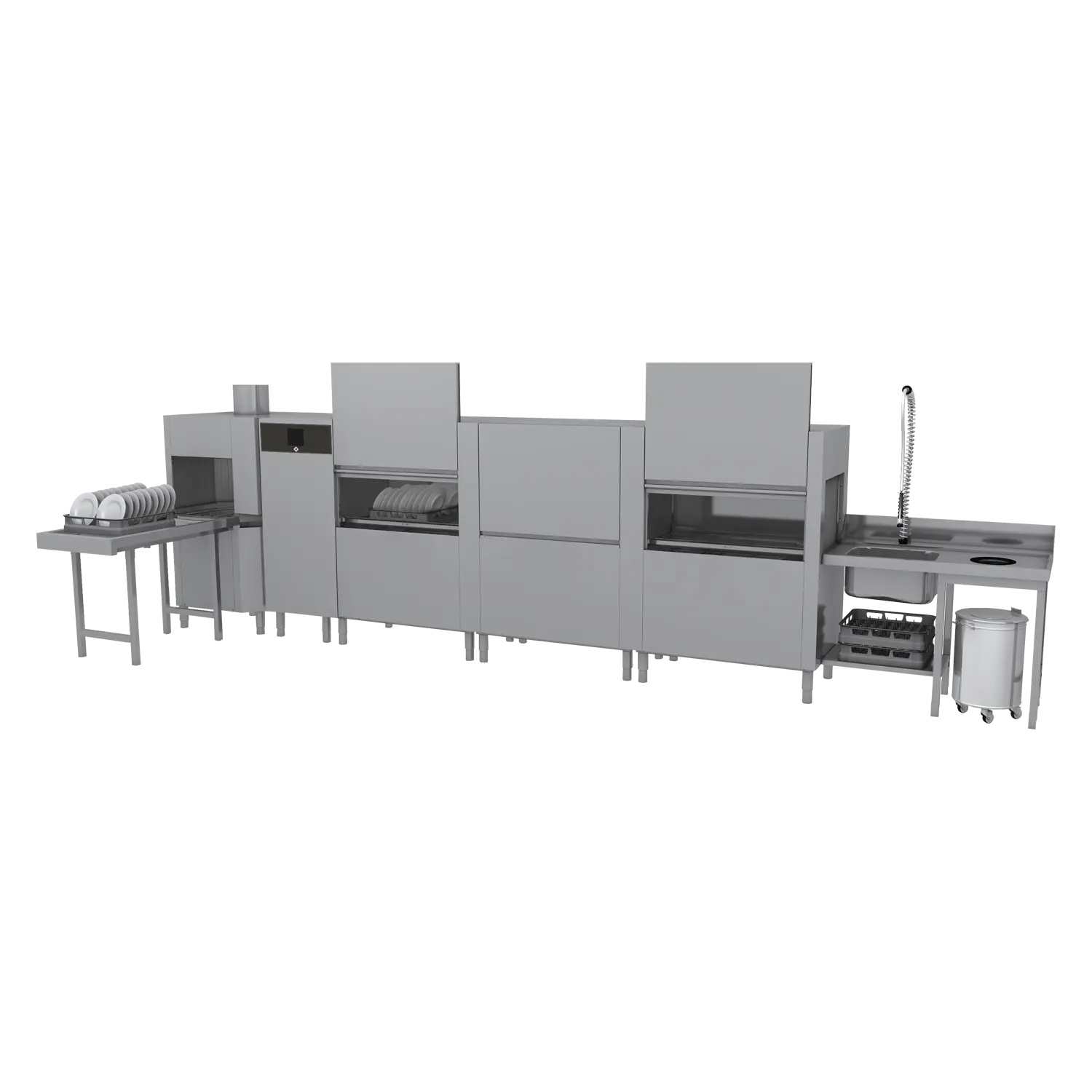

Rack conveyor dishwasher 300, cold water, left exit, corner dryer | RM - XT 300 L U Y
- To the product for free: 1x RM Clean+ 12 kg (00012271) and 1x RM Rinse+ 10 kg (00012273)
- Display type: Touch display
- Number of programs: 5
- Number of skin: 2
- Maximal rack feed [racks/h]: 300
- Door clear height [mm]: 450
- Rack size [mm]: 500x500
- Water consumption of the washing cycle [l/basket]: 0,6-1,1
- Washing cycle time [s/basket]: 18
- Detergent and rinse pump system: Accurate dosing with a peristaltic pump
- Wash pump type: DuoFlow
- Detergent dispenser: Yes
- Rinse aid dispenser: Yes
Technical details
| To the product for free | 1x RM Clean+ 12 kg (00012271) and 1x RM Rinse+ 10 kg (00012273) |
| SAP Code | 00018470 |
| Net Width [mm] | 4771 |
| Net Depth [mm] | 880 |
| Net Height [mm] | 1615 |
| Net Weight [kg] | 840.00 |
| Gross Width [mm] | 5600 |
| Gross depth [mm] | 1200 |
| Gross Height [mm] | 2060 |
| Gross Weight [kg] | 900.00 |
| Device type | Electric unit |
| Control type | Touchscreen |
| Material | AISI 313 |
| Power electric [kW] | 46.800 |
| Loading | 400 V / 3N - 50 Hz |
| Rack size [mm] | 500x500 |
| Number of programs | 5 |
| Opening of device | Retractable up |
| Door clear height [mm] | 450 |
| Inlet pressure [bar] | 0,5-4 |
| Adjustable feet | Yes |
| Number of skin | 2 |
| Modular construction | Yes |
| Pre-wash module | Yes |
| Maximal rack feed [racks/h] | 300 |
| Self-cleaning cycle | No |
| Boiler capacity [ l ] | 34.00 |
| Boiler power [kW] | 28.000 |
| Basin volume [l] | 70 |
| Tank power [kW] | 10.500 |
| Number of washing arms | 5 |
| Number of rinsing arms | 5 |
| Number of arms for both rinsing and washing | 1 |
| Arm connection | Click-clack - easy removal with one hand |
| Washing arm type | Firm |
| Washing arm material | Stainless steel |
| Atmospheric boiler with rinse pump | Yes |
| Rinsing arm type | Firm |
| Rinsing arm material | Stainless steel |
| Deep drawn tank | Yes |
| Drain filter | Triple filtration captures particles up to 0.8 mm in size, electronically controlled partial discharge before the rinsing phase ensures 0% loss of clean water into the waste |
| Thermostop | Yes |
| Boiler thermostat adjust | Yes |
| Rack feed capacity | 160-210-230-250-300 |
| Detergent and rinse pump system | Accurate dosing with a peristaltic pump |
| Energy Saving system | Energy saving mode |
| Rinse system | Composite arms common for rinsing and washing with geometry for spraying rinse water in thin jets directly against dishes |
| Heating system | System of simultaneous operation of the heating element of the bath and the boiler, reducing the time for starting the next cycle |
| Hot water electric valve | No |
| Min supply water temperature [°C] | 10 |
| Max supply water temperature [°C] | 60 |
| Built-in softener | No |
| Display type | Touch display |
| Display size | 5’’ |
| Location of control panel | On the front panel - long side |
| Drain pump | No |
| Self-diagnostics | Yes |
| Double rinse | Yes |
| Wash pump type | DuoFlow |
| Detergent dispenser | Yes |
| Rinse aid dispenser | Yes |
| Water consumption of the washing cycle [l/basket] | 0,6-1,1 |
| Washing cycle time [s/basket] | 18 |
| Rinse water temperature [°C] | 82 (65) |
| Program High Capacity | Yes |
| Program General purpose | Yes |
| Program Prolonged contact (DIN 10534) | Yes |
| Program Glasses | Yes |
| Cross-section of conductors CU [mm²] | 25 |
| Water supply connection | 3/4" |
| Diameter nominal | DN 50 |
